Automatic Double Lane Paper Carton Erecting Machine
  • LZ-2200S
  • Automatic Double Lane Paper Carton Erecting Machine
  • Produce speed : 120-320pcs/min
  • Weight : 2500kgs
  • Size : 3600*1800*1500mm
  • Inquiry
    Product Details

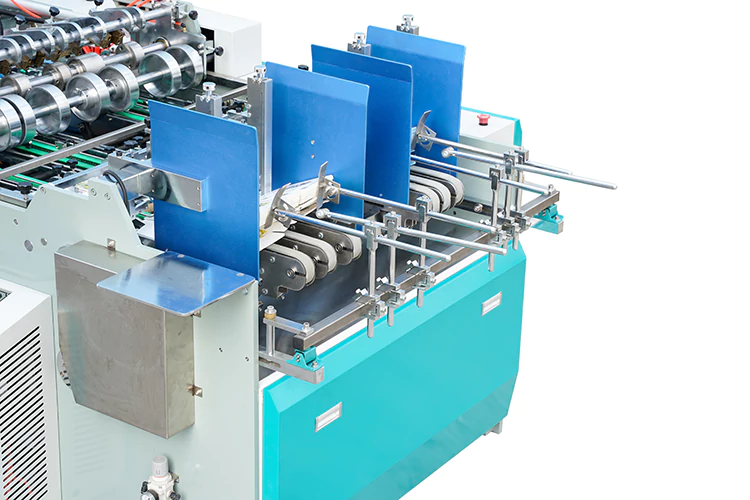

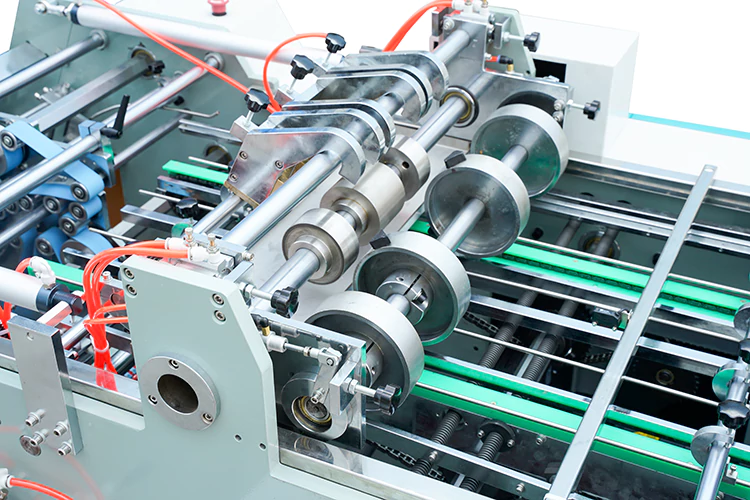

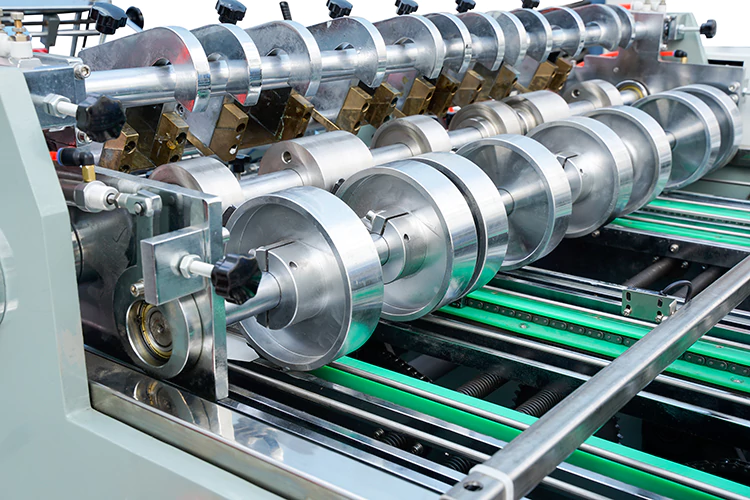

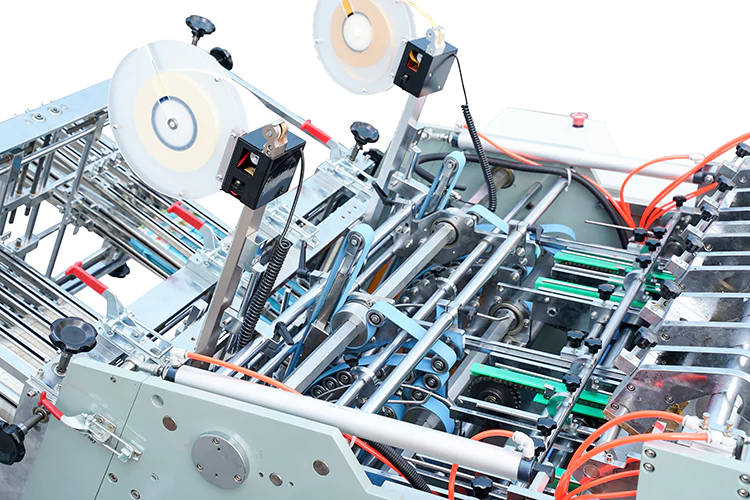

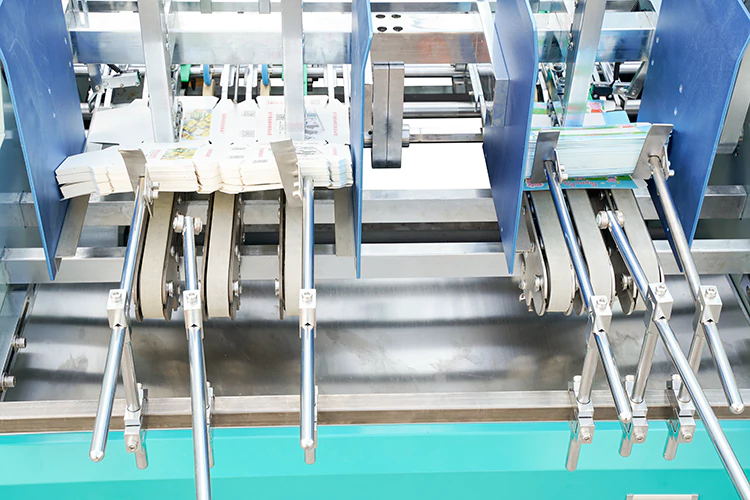

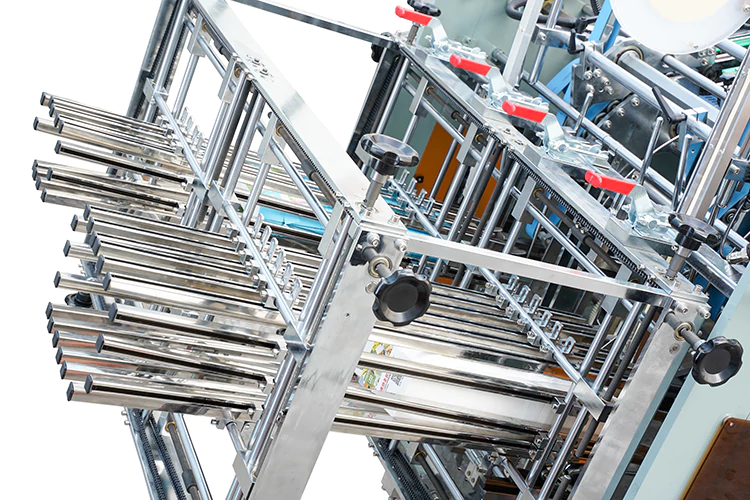

    LZ-2200S series automatic paper carton erecting machine is the double lane carton erecting machine, greatly improve production efficiency and save production costs. This machine adopts the design of ramp conveying paper, which making the paper feeding, gluing, forming more stable. It is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking and servo motor paper feeding, auto gluing, automatic paper tape counting, and chain drive.

    Sell your house as-is in Nacogdoches, TX without any repairs or renovations through”

    All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation. It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.

    Techical Specification
    Main Technical Parameters
    Machine Model LZ-2200S
    Production capacity 120-320pcs/min(according to different box shape)
    Raw material 180-600gsm, cardboard, coated paper, kraft paper, corrugated paper
    Paper thickness 200-600g/M white paper/corrugating paper thick corrugated paper 1.5mm
    Paper size L: 100-450mm
    Degree of taper 5° -40°
    Air source 2kgs/cm2
    Power 11KW
    Overall Dimension 3600*1800*1500mm
    Weight 2.5T
    Finished Products
