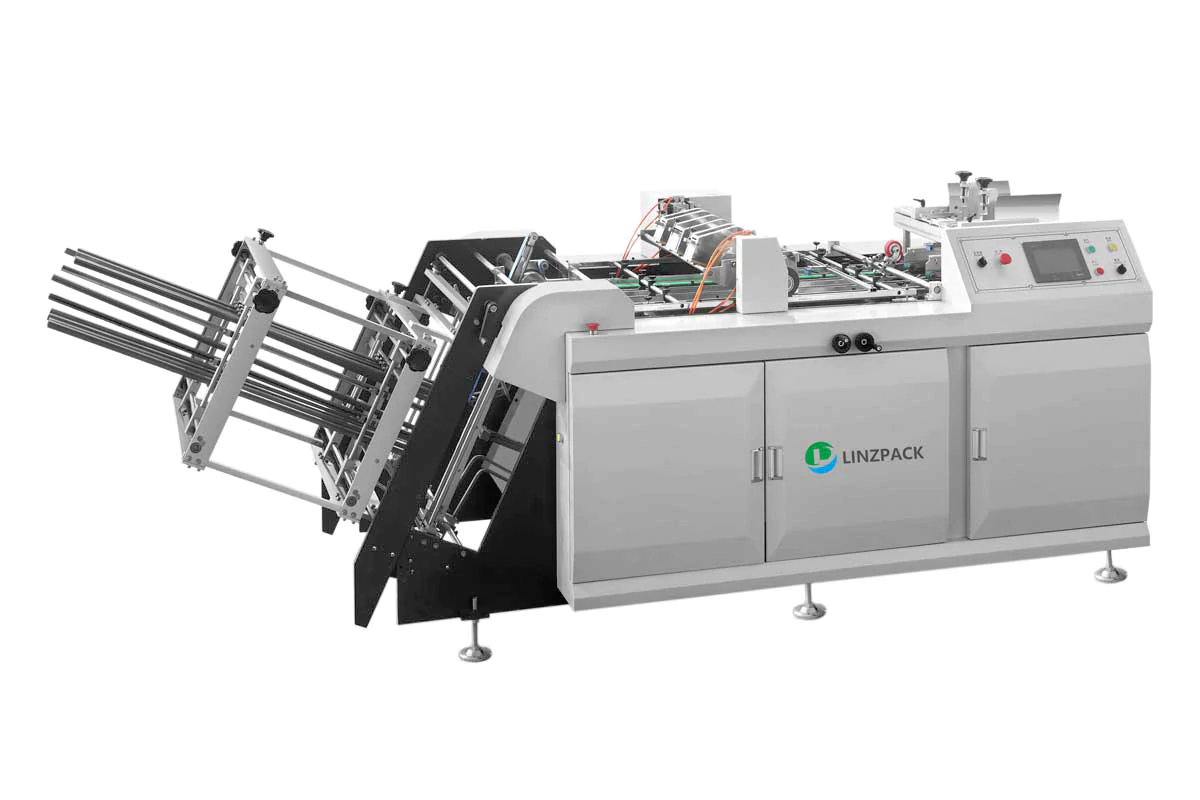

Paper Tray Forming Machine with Glue Sprayer System
  • LZ-1200D
  • Paper Tray Forming Machine with Glue Sprayer System
  • Produce speed : 80-180pcs/min
  • Weight : 2000 kgs
  • Size : 2950*1300*1300mm
  • Inquiry
    Product Details

    LZ-1200P is an ideal equipment to produce paper box such like hamburger box, chips box, fried chicken box,kids meal box, fast food box, fast noodles box etc.With firm structure, high quality, low noise and high efficiency. It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit. Whole machine use the imported brand electric appliance, such as French Schneider, Japan Omron and Germany Siemens.

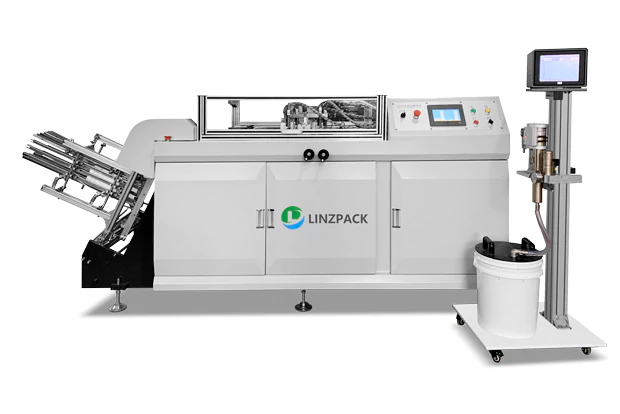

    Device for feeding Water-based adhesive(glue). High efficiency and high precision to feeding glue and the sealing edge of the carton can be adjustable, its device design reasonable, compact form and running steadily, easy and convenience to clean.Finished carton outing device.

    Full automatic carton outing device (feeding, collection, stacking) and fixing with counting, convenient for packing and save of labors. Photoelectric failure-detecting system is available, if there is no papers or paper feeding blocking, the machine will stop by it self. So it can reduce the cost consume, and increase more safety performance.

    Techical Specification
    Model LZ-1200D
    Produce speed 80—180pcs/min (different paper box shapes, he speed is different )
    Raw material 180—600gsm cardboard /coated paper/ corrugated paper


    Paper thickness 1.5mm
    Carton size Length: 100-450mm

    width :100-580mm

    height : 15-200m

    Carton angle 5° -40°
    Paper size Max: 650mm(W)*500mm(L)
    Max box size 450mm*400mm
    Min box size 50mm*30mm
    Air source 2kgs/cm²
    Dimension(mm) 3700*1350*1450
    Voltage 380V 50Hz / 220V  50Hz
    Total power 4.5kw
    Machine weight 2000kgs

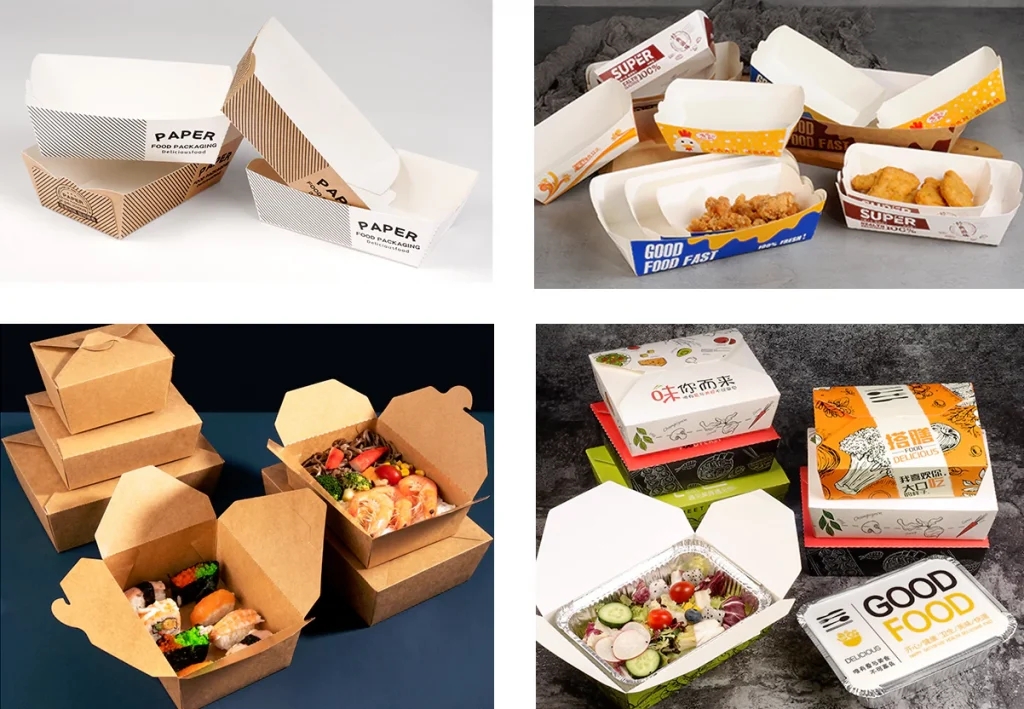

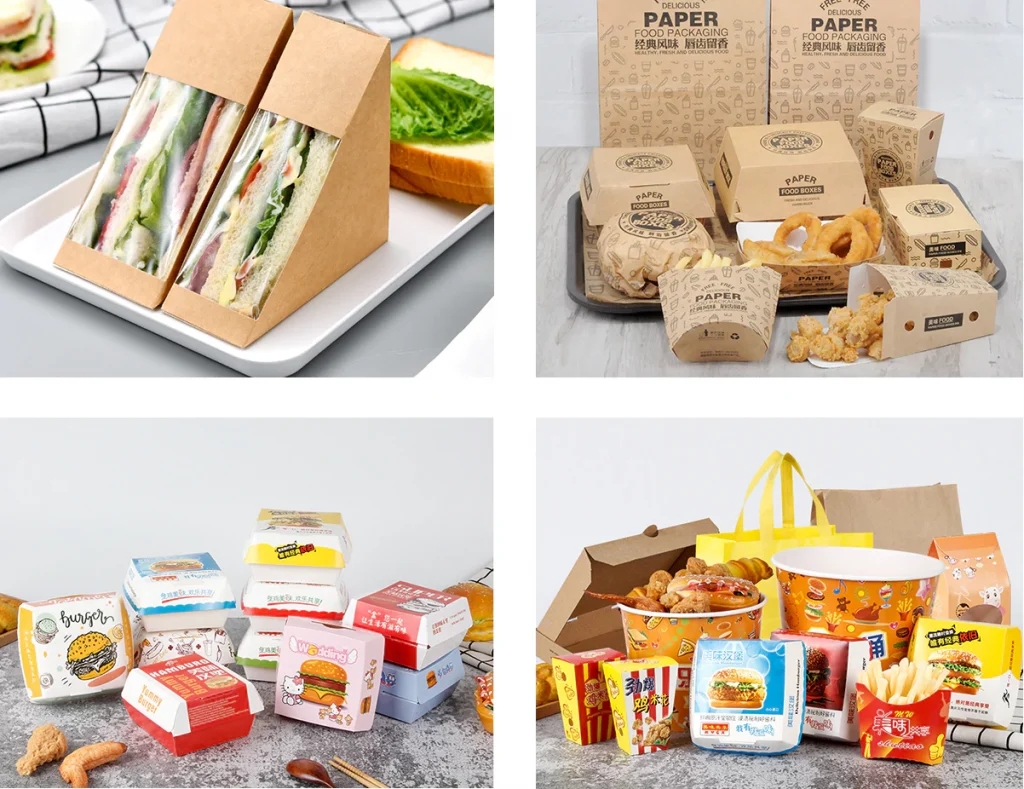

    Finished Products
