Roll Die Cutting Machine
  • LZ-1000
  • Roll Die Cutting Machine
  • Max Cutting Arear:940×510mm
  • Production Capacity:90-180time/min
  • Weight:5.5T
  • Inquiry
    Product Details

    Synchronous belt drives

    1、Hihg precision.

    2、Servo drive, easy to operate

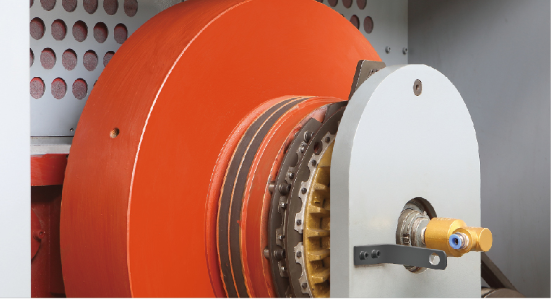

    Pneumatic clutch

    Higt quality clutch can reflect rapidly and ensure higt  security

    Techical Specification
    Model LZ-970
    Max Cutting Arear 940×510mm
    Cutting Precision 0.20mm
    Paper Gram Weight 120-400g/m3
    Production Capacity 90-180time/min
    Air Pressure Requirement 0.5Mpa
    Air Pressure Consumption 0.25m3/min
    Max Cutting Pressure 150T
    Weight 5.5T
    Max Roller Diameter 1600mm
    Total Power 12kw
    Dimension 4500×2200×1800mm
